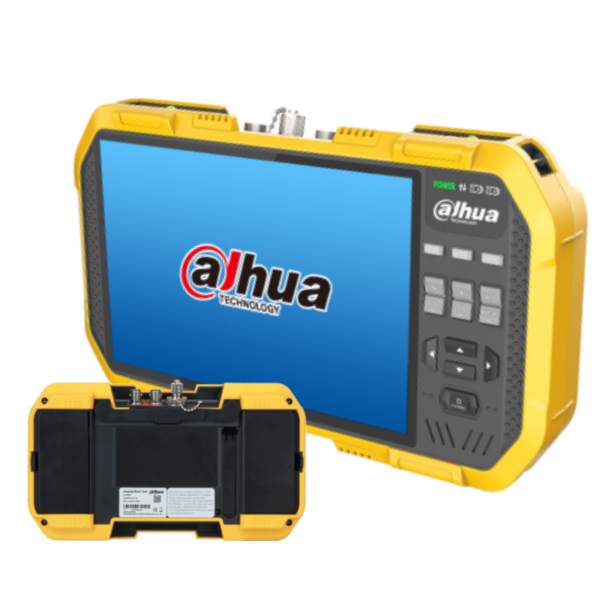

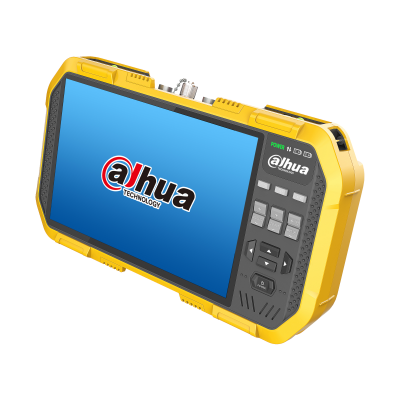

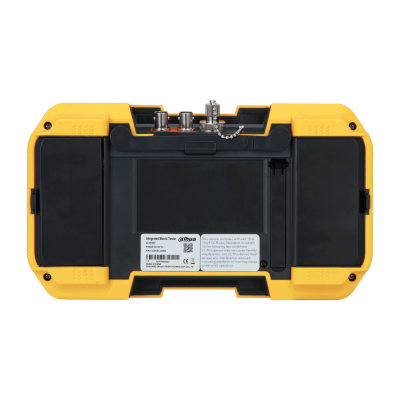

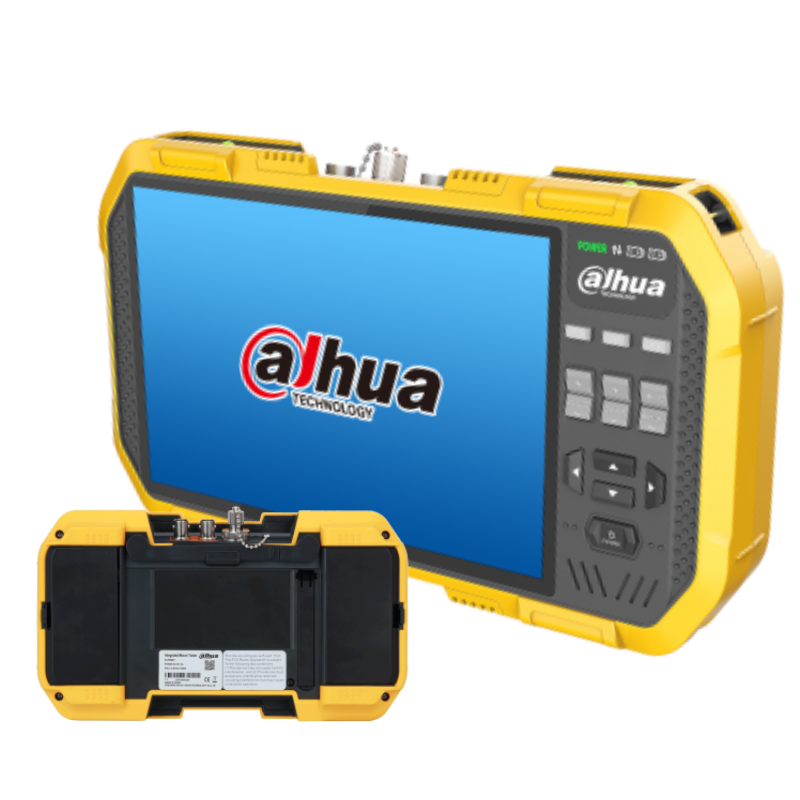

Integrated Mount Tester

System

Operation System

Linux

Language

13 languages including Chinese and English

Operation mode

Touchscreen

Auto Standby/Power Off

Off/5–60min

Keyboard Sound

On/Off

Display Screen

7-in 16.7M color TFT  touch screen, RGB interface lcd display: 1920 ×1200, backlight brightness adjustable

Button

Keypad: 13 keys
Others: On–off button

LED

2

Wi-Fi

Frequency: 2.4G/5G
Protocol: IEEE 802.11a/n/ac

Update

Supports online and local update

Structure&Environment

Net Weight

0.93kg (2.05 lb)

Product Dimensions

235.0 mm × 135.0 mm × 45.0 mm (9.25” × 5.31” × 1.77”) (L × W × H)

Operating Temperature

–10 °C to +55 °C (14 °F to 131 °F )

Operating Humidity

30%–90% (RH)

IPC Test

Camera Access

ONVIF and Dahua private protocol

Resolution

2 MP (only supports 1920 × 1080@25 fps, 1920 × 1080@30 fps); 4 MP; 6 MP; 4K

Initialization

Yes


Live view, snapshot and recording, zoom, and H.264/H.265 decoding

Function Control

Modify the IPC resolution, IP address and account password. Control IPC to restore factory defaults

Analog Video Test

Video Format

HDCVI; HDTVI; AHD; CVBS (NTSC, PAL)

Resolution

HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2560 ×1440@25/30 fps, 2880 × 1620@25/30 fps
HDTVI: 720p@25/30/50/60 fps, 1080p@25/30fps, 2048×1536@18 fps, 2560 × 1440@25/30 fps
AHD: 720p@25/30 fps, 1080p@25/30fps, 2048 × 1536@ 18/25/30 fps, 2560 × 1440@25/30 fps
CVBS: 720 × 576@25 fps, 720 × 480@30 fps

Function Control

OSD menu; PTZ control


Live view, snapshot and recording, zoom

Video Signal Generator

PAL; NTSC viedo test signal
HDCVI; HDTVI; AHD viedo test signal (720p/1080p)

UTC

UTC

Switches from CVBS mode to CVI/TVI/AHD mode;
Switches from one HD format (up to 1080p) to another HD format

DMM

DC Voltage

Limit: 2/20/200/600 V
Reading range: ±19999
Min. Resolution: 0.1 mV
Accuracy: ±0.1%+8

AC Voltage

Limit: 20/200/600 V
Reading range: ±1999
Min. Resolution: 1 V
Accuracy: ±1.2%+3

DC Current

Limit: 20/200/2000 mA
Reading range: ±19999
Min. Resolution: 1 uA
Accuracy: ±0.1%+8*

AC Current

Limit: 20/200/2000 mA
Reading range: ±1999
Min. Resolution: 1 uA
Accuracy: ±1.2%+3

Resistance Test

Limit: 2 kΩ/20 kΩ/200 kΩ/2 mΩ/20 mΩ
Reading range: 0–19999
Min. Resolution: 0.1 Ω
Accuracy: ±0.1%+8

Capacitance Test

Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF
Reading range: 0–1999
Min. Resolution: 1 pF
Accuracy: ±4%+5

Diode Voltage Drop

Limit: 2 V
Reading range: 0–19999
Min. Resolution: 0.1 mV
Accuracy: ±0.1%+20

Continuity Test

Limit: 2 kΩ
Reading range: 0–19999
Min. Resolution: 0.1 Ω
Accuracy: ±0.1%+20

Others

RS-485 Control

Communication protocol: More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan
Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600bps, 19200 bps

Wireless

Spectrum Test; Wi-Fi Test; Signal Monitoring

Cable Test

Network Cable Test: Test network cable pair length, attenuation and delay deviation.
Test two or more network cables. The connection sequence and network cable number will be displayed on the screen.

HDMI Test

1-ch HDMI video input (720p and 1080p);
1-ch HDMI video output (1920 ×1080p)

Audio Test

1 × audio input, and 1 audio output

Power Supply for Camera

12 VDC 2A

Network Test

Features IP address scanning and PING test.

Protocol Code Acquisition

Built–in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal codes.

Optical Power Meter

Detector Type: InGaAs
Calibrated Wavelength: 1625/1550/1480/1310n/1300/850 nm
Power Test Range: –70 dBm to +10 dBm
Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F)
Resolution: Linear: 0.1%, logarithmic : 0.01 dBm
Connector: FC/PC

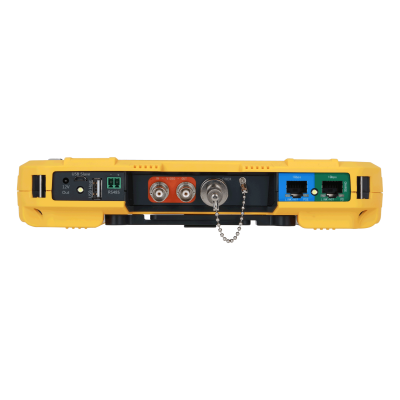

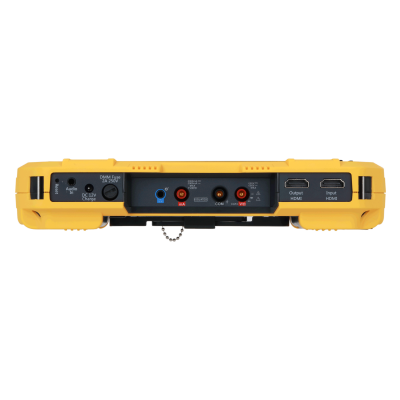

Port

Power

1 × charge port, 12 VDC
1 × power output port, 12VDC 2A

Audio Port

1 × audio input port, 1 × audio output port

USB

1 × USB, 1 × Micro-USB

Network Port

2 × RJ45 10M/100M/1G network port

SD Card

NA

HDMI

1 × HDMI input port
1 × HDMI output port

RS-232

NA

RS-485

1

VLS

NA

OPM

1

Multimeter

4

Power Supply

Power Supply

12 VDC 1A/POE 48 V–0.5 A

Battery

Two battery compartments.
Each battery compartment can hold a dedicated lithium battery pack with a capacity of 18.5Wh. The combined working time is about 10 hours. (can operate on a single battery).

Certifications

Certifications

CE: EN 55032: 2015, EN 55032: 2017, EN 61000–3–2: 2014, EN 61000–3–3: 2013, EN 61010-1: 2010, EN 62321–1: 2013
FCC: FCC Part 15 Subpart B: 2016
